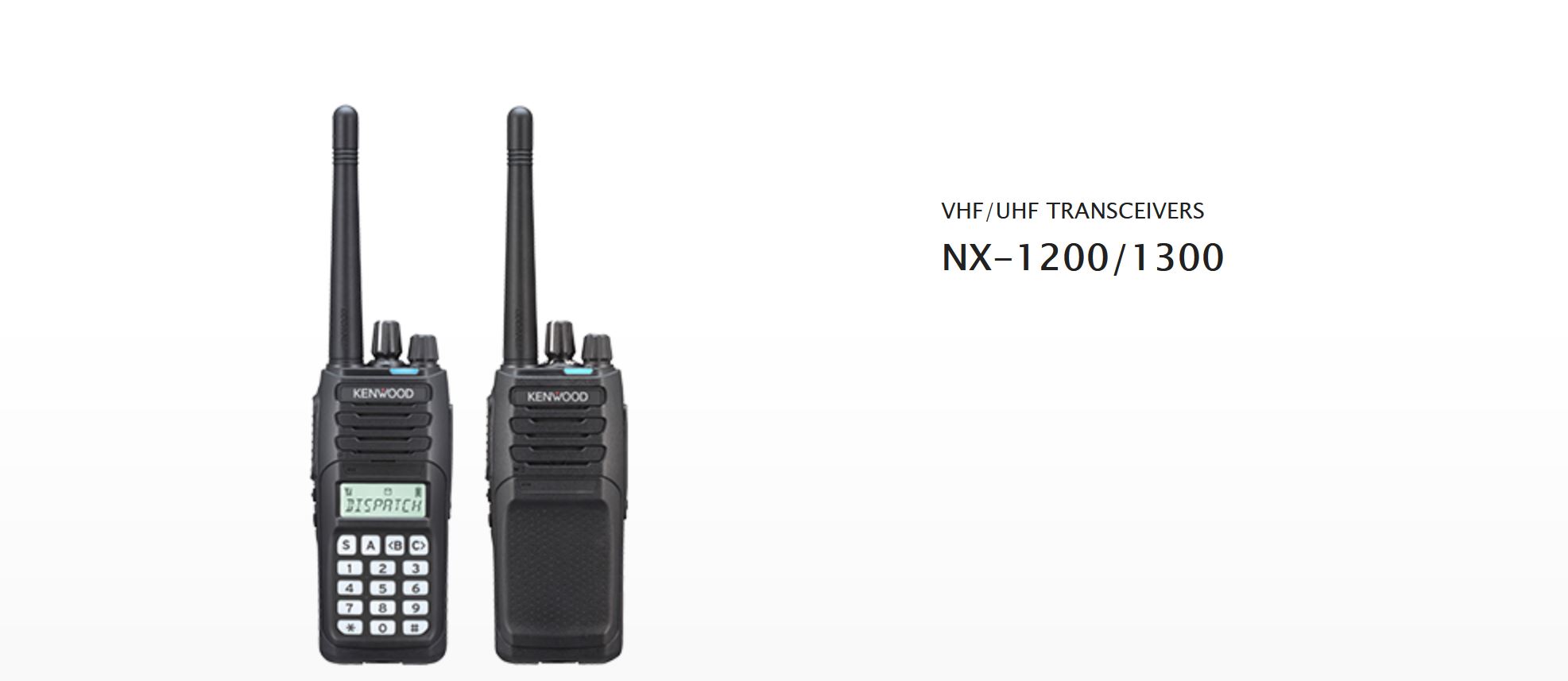

NX-1200
Built for the hardest channel.
Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM analog protocols
In partnership with ABC
Product Overview
Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM analog protocols
Features
- ✓ Choose from direct & intuitive LCD with standard keypad or basic enclosures
- ✓ Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
- ✓ Large 7-Color LED indicator on the top panel
- ✓ Selective Power-on LED
- ✓ Selective Call Alert LED
- ✓ Battery Level Indication
- ✓ Multi-status function indication
- ✓ RF output power 5W both on VHF/UHF
- ✓ Mixed Zone - analog and digital
- ✓ Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
- ✓ digital processor
- ✓ Audio Equalizer: Flat, High, Low
- ✓ Auto Gain Control: On, High, Low, Off
- ✓ Noise Suppressor
- ✓ Microphone type settings
- ✓ Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
- ✓ Normal Scan
- ✓ VOX & PTT u2013triggered Semi- VOX, Voice-operated TX
- ✓ Emergency Function: Customizable Emergency Profile
- ✓ Lone Worker
- ✓ Max / Min Volume setting & Volume control
- ✓ Voice Announcement
- ✓ Remote Stun / Kill / Check
- ✓ Front Panel Programming Mode (for Keypad model)
- ✓ Electronic Serial Number (ESN)
- ✓ MIL-STD-810 C/D/E/F/G
- ✓ IP67
- ✓ Intrinsically safe option (Available later)
Accessories
KNB-84 L
Battery
DOCUMENTATION
Resources
Datasheets and manuals are controlled documents. Anything released to your account can be downloaded here; the rest can be requested below.
| Document | Type | Access | |
|---|---|---|---|
| NX-1200 Data Sheet | Data Sheet | On request | Sign in to download |
| Service Manual | Manual | On request | Sign in to download |
Request documentation
Specifications
| General | NX-1200 | NX-1300 | |
|---|---|---|---|
| Pre-set Frequencies | Type 1 | 136-174 MHz | 450-520 MHz |
| Type 2 | — | 400-470 MHz | |
| Max. Channels per Radio | 260 (64 for basic model) | ||
| Number of Zones | 128 (4 for basic model) | ||
| Max. Channels per Zone | 250 (16 for basic model) | ||
| Channel Spacing | Analog | 30 / 25 / 15 / 12.5 kHz | |
| Digital | 12.5 / 6.25 kHz | ||
| Power Supply | 7.5 VDC ±20% | ||
| Operating Temperature | -30°C to +60°C | ||
| Frequency Stability | ±0.5 ppm | ||
| Antenna Impedance | 50 Ω | ||
| Dimensions (W×H×D) | 54 × 123 × 33.5 mm | ||
| Weight (Radio Only) | 175 g | ||
| Weight (with KNB-84L) | 295 g | ||
| Battery Life | DMR | Analog/NXDN | |
| KNB-84L (1900mAh) | ~14.5 hours | ~11 hours | |
| KNB-69L (2550mAh) | ~19 hours | ~14 hours | |
| Receiver | NX-1200 | NX-1300 | |
| Sensitivity | NXDN 6.25kHz (3% BER) | 0.18 μV | |
| NXDN 12.5kHz (3% BER) | 0.22 μV | ||
| DMR 12.5kHz (1% BER) | 0.25 μV | ||
| DMR 12.5kHz (5% BER) | 0.18 μV | ||
| Analog 12.5/25kHz (12dB SINAD) | 0.24 / 0.20 μV | ||
| Selectivity Analog @ 12.5/25 kHz | 68 dB / 74 dB | ||
| Intermodulation Distortion | 70 dB | ||
| Spurious Rejection | 70 dB | ||
| Audio Distortion | 7% | ||
| Audio Output Power | 1 W / 12 Ω (Internal) | ||
| Transmitter | NX-1200 | NX-1300 | |
| RF Power Output (High / Mid / Low) | 5 W / 4 W / 1 W | ||
| Spurious Emission | -70 dB | ||
| FM Hum & Noise Analog @ 12.5/25 kHz | 40 dB / 45 dB | ||
| Audio Distortion | 2% | ||
| DMR Digital Protocol | ETSI TS 102 361-1, -2, -3 | ||
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D, 7K60FXD, 7K60F7W | ||
| FCC ID Type 1 | K44501000 | K44501101 (pending) | |
| FCC ID Type 2 | — | K44501100 | |
| IC Certification | 282F-501000 | 282F-501100 | |
